Transmitter temperature Humidity modbus output external Sensor HE200M
Introduction:
HE200M is temperature, relative humidity transmitter, was developed by HUATO, adopt imported sensors, components and low-power consumption SCM design, which assure the quality and stability. This series are industrial class senso, it can support Voltage output. It has unique design features to ensure that the heat generated by circuit board will not influence the measuring. They can be mounted on wall and enjoy wide measuring range and high accuracy. With this transmitter temperature and humidity signals can be out put by the means of modbus . In addition, it has internal probe.
Features:
-
Adopt import components and high-performance SCM design.
Professional industrial design, avoid the test influence caused by circuit heat.
Enjoy various outputs, 4~20mA/0~5V/0~10V/RS485/Modbus output.
Enjoy patent technique, very easy to install and maintain.
Enjoy high accuracy. Economical and practical.
Product dimensions: 100*100*30mm(3.94"*3.94*1.28"inch)
LCD size: 60*40mm(2.36"*1.57"inch)
Certificate: CE,ISO
Models list and it's specifications :
| Model | HE200A | HE200A-EX | HE200V5 | HE200V5-EX | HE200V10 | HE200V10-EX | | Temperature Accuracy | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ | | Humidity Accuracy | ±3%RH | ±3%RH | ±3%RH | ±3%RH | ±3%RH | ±3%RH | | Temperature Range | 0~50℃ | -30~70℃ | 0~50℃ | -30~70℃ | 0~50℃ | -30~70℃ | | Humidity Range | 0~100%RH | 0~100%RH | 0~100%RH | 0~100%RH | 0~100%RH | 0~100%RH | | Sensor type | Internal | External with 3 meters cable | Internal | External with 3 meters cable | Internal | External with 3 meters cable | | Output | 4~20mA | 4~20mA | 0~5V | 0~5V | 0~10V | 0~10V | | Wire mode | 3 lead terminals | 4 lead terminals | | Resolution | 0.1℃/0.1%RH | | Power supply | 9V~30V DC | | Net weight | 280g | | Accessory | Operation manual | |
| Models List |
| Model | HE200M | HE200M-EX | HE200N | HE200N-EX |
| Temperature Accuracy | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ |
| Humidity Accuracy | ±3%RH | ±3%RH | ±3%RH | ±3%RH |
| Temperature Range | 0~50℃ | -30~70℃ | 0~50℃ | -30~70℃ |
| Humidity Range | 0~100%RH | 0~100%RH | 0~100%RH | 0~100%RH |
| Sensor type | Internal | External with 3 meters cable | Internal | External with 3 meters cable |
| Output | Modbus | Modbus | RS485 | RS485 |
| Wire mode | 4lead terminals | 4 lead terminals | |
| Resolution | 0.1℃/0.1%RH | |
| Power supply | 9V~30V DC | |
| Net weight | 280g | |
| Accessory | Operation manual | |

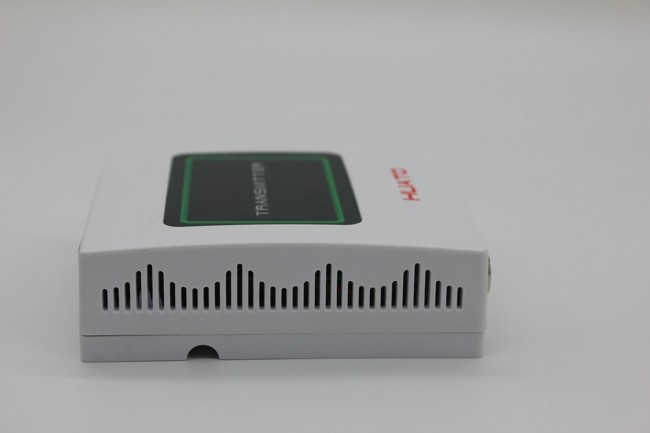

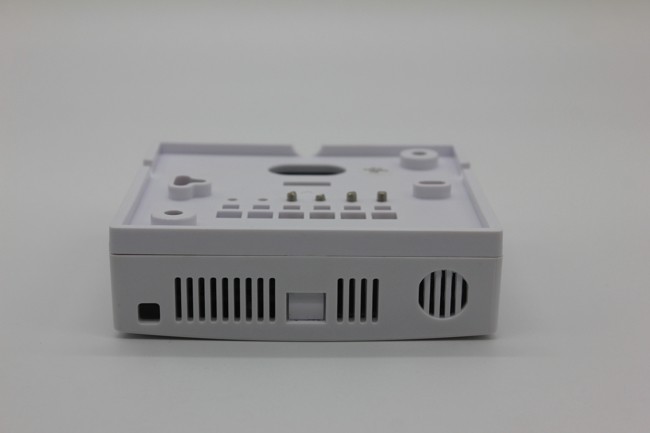

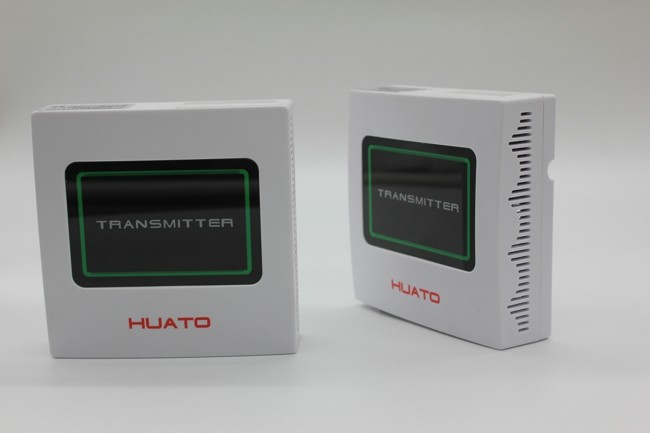

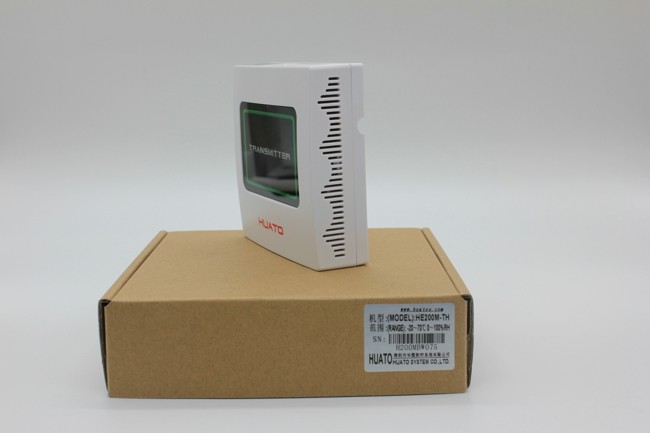

Product pictures
Applications:
HE200 series temperature humidity transmitter has been widely use in applications in following sectors : pharmacy, chean rooms, industrial and vivil sectors, crowded places , canteens, auditoria, gyms, high-density farms, greenhouse , ect .
