High Precision GSM Data Logger With USB Interface Temperature Sms Alert System

Name: High Precision GSM Data Logger With USB Interface Temperature Sms Alert System
Brand: Huato
Price: 1 USD

High Precision GSM Data Logger With USB Interface Temperature Sms Alert System Manufactures

Brand Name : Huato

Model Number : S500-TH-GSM

Certification : CE

Place of Origin : Made in China

MOQ : 1pc High Precision SMS Alarm Tempearture Humidity GSM Data Logger with USB interface HUATO S520-TH-GSM

Price : Very Competitive

Payment Terms : T/T, Western Union, Paypal, RMB

Supply Ability : 5000units per month

Delivery Time : 1 working day after payment received

Packaging Details : Standard Carton Box

Description : High Precision SMS Alarm Tempearture Humidity GSM Data Logger with USB interface HUATO S520-TH-GSM

S520-TH-GSM Selling Point : GSM alarm when temperature or humidity exceeds the setting limits

Temperature Measurement Range : -20~+70℃

Humidity Measurement Range : 0~100%RH

Temperature Accuracy : ±0.3℃

Humidity Accuracy : ±3%RH

Storage Capacity : 65000 readings

Sampling Interval : From 2s to 24hours

Accessories : Huato S520-TH-GSM +Battery+ Software and User manual in CD+ Plastic screw bag+ External Sensor+ GSM antena+ Adapter (Optional) + External LED&Sound Alarm (Optional)

Warranty Period : 365 days

Material : ABS plastic for industrial usage

Color of panel : Black

Packing ways : Carton box with plastic foam in it

Sensor Type : Built-in Sensor

LCD Size : 97mm*78mm

Dimension : 135mm*124mm*35mm

Interface : USB

Weight : 380g

Display : LCD display

Frequency Range : 850 / 900 / 1800 / 1900mhz

Battery : 9v Block Battery

Optional Accessories : Adapter

Sensor : Imported from Switzerland Directly

Contact Now

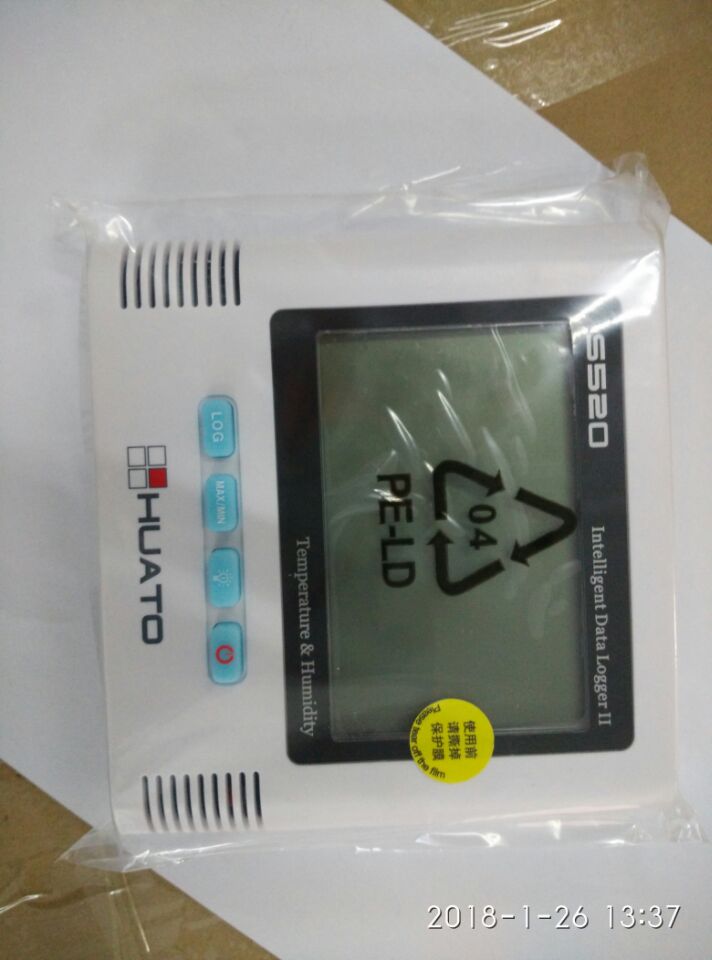

High Precision SMS Alarm Tempearture Humidity GSM Data Logger with USB interface HUATO S500-TH-GSM

Introduction

S500 GSM data logger was designed to monitor temperature & humidity with capability to send alarming message to phone numbers set up by customers when temperature data is out of pre-definded limits; and will send good news message when data is back within pre-defined limits. In addition,customer can get real-time data message by calling phone number in the logger.

This series use original sensor import from America or Switzerland, has high accuracy and stable. The user can also calibration the instrument by deviation.

Working princeple

1) If user defined maxi/mini temperature values are exceeded, our device will send SMS to USER’S Mobile phone. We list the GSM alarm example picture as follows:

MobilePhone Tex example as follows:

High Precision GSM Data Logger With USB Interface Temperature Sms Alert System

2) When the Temperature returned to normal range ,our device will sent the GSM to user again.

Example as follow:

3). User can user can keep track of Real-time temperature

When the user call to device and device will sent SMS to tell user what the temperature and humidity at anytime.

High Precision GSM Data Logger With USB Interface Temperature Sms Alert System

Features

Measure temperature and humidity with external sensor.

1) Capacity 43,000-86,000 data memory.

2) Large LCD display to show logging information easily.

3) GSM,sound light Alarm if user-defined maximum/minimum values are exceeded.

4) Analysis software used to view graph, specific data and analysis for logging data.

5) Log interval: 2s-24h .

6) Backlight display shows more clearly.

7) External power or battery supply.Display show the battery indicator.

Specifications

Model	Accuracy	Measuring range	Sensor type	Capacity
S500-TH-GSM	±0.5°C/±5%RH	-20~70°C 0~100%RH	Temperature + humidity,internal	43000
S500-EX-GSM	±0.5°C/±3%RH	-40~85°C 0~100%RH	Temperature + humidity,external sensor with 3 meters	43000
S520-TH-GSM	±0.3°C/±3%RH	-20~70°C 0~100%RH	Temperature + humidity,internal	43000
S520-EX-GSM	±0.3°C/±3%RH	-40~85°C 0~100%RH	Temperature + humidity,external sensor with 3 meters	43000
S580-TH-GSM	±0.2°C/±2%RH	-20~70°C 0~100%RH	Temperature + humidity,internal	43000
S580-EX-GSM	±0.2°C/±2%RH	-40~85°C 0~100%RH	Temperature + humidity,external sensor with 3 meters	43000
S500-ET-GSM	±0.5°C	-40~85°C	Single Temperature external sensor with 3 meters	43000
S520-DT-GSM	±0.5°C	-40~85°C	Dual Temperature external sensor with 3 meters	43000
S520-ET-GSM	±0.3°C	-40~85C	Single Temperature external sensor with 3 meters	43000
S520-DT-GSM	±0.3°C	-40~85°C	Dual Temperature external sensor with 3 meters	43000

Analyzed Software interface

High Precision GSM Data Logger With USB Interface Temperature Sms Alert System

Applications

It has been widely applied in agricultural research fields ,electronics, food industry, medical industry ,environmental protection and laboratory, etc.

Standard accessories

Battery+Screw+User manual+LogPro Software+USB cable

Optional accessories

AC-DC adapter+External alarm

High Precision GSM Data Logger With USB Interface Temperature Sms Alert System
