Introduction :
S500-ET-Printer alarm temperature data logger developed by HUATO company . This series logger featured with large LCD display, elegant appearance and hight precision, all the sensors are produced in USA , which assures accuracy and stability.
S500 series data logger build-in sound and light alarm function, that will alarm when exceed limit that users set up. In addition,different measuring range up to 100℃ with PT100 sensor.
| Features: |
| Automatic Record function, mass storage function: 4,3000 |
| Log interval : 2s to 24 hours |
| Large LCD display temperature , number of data stored as well as time simultaneously. |
| USB interface, download data to PC via USB cable. |
| Built-in sound & light alarm, when the data exceed the limit that user set up, device will alarm. |
| Easy to operate, can be placed on dexk or mounted on wall. |
| MAX/MIN function key to show the maximum/minimum value |
| Deviation calibrate the instrument. |
| Temperature Data Logger Model list |
| Model | S500-ET | S500-DT | S500-EPT | S500-DPT | S520-ET | S520-DT | S520-EPT | S520-DPT |
| Temperature Accuracy | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.3℃ | ±0.3℃ | ±0.3℃ | ±0.3℃ |
| Temperature Measurement Range | -40~+85℃ | -40~+85℃ | -100~+100℃ | -100~+100℃ | -40~+85℃ | -40~+85℃ | -100~+100℃ | -100~+100℃ |
| Sensor type | Single external sensor with 3meters cable | Dual external sensors with 3meters cable | Single external PT100 sensor with 2meters cable | Dual external PT100 sensors with 2meters cable | Single external sensor with 3meters cable | Dual external sensors with 3meters cable | Single external PT100 sensor with 2meters cable | Dual external PT100 sensors with 2meters cable |
| Sensor quantity | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 |
| Channel | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 |
| Resolution | 0.1°C |
| Automatic Record Capacity | 4,3000 |
| Battery | 9V Block Battery *1 |
| Dimensions | 135mm * 124mm * 35mm(5.31"*4.88"*1.37inch) |
| LCD size | 97mm * 78mm(3.81"*1.37") |
| Weight | 380g |
| Standard Accessories | 9V Block Battery, user manual,USB cable, software, screw |
| Optional Accessories | AC-DC adapter, printer,external sound & light alarm |
| Certificate | CE,ISO |

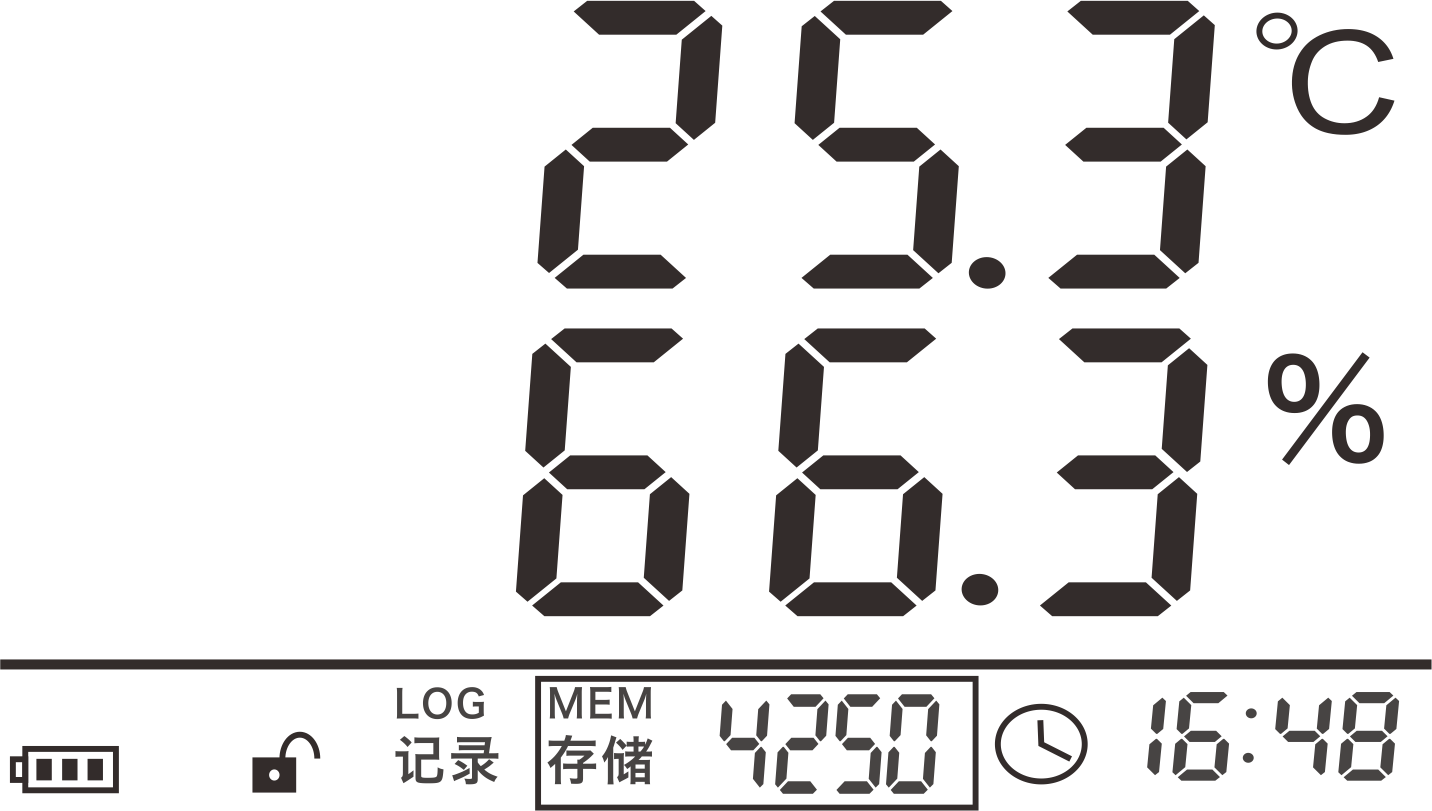

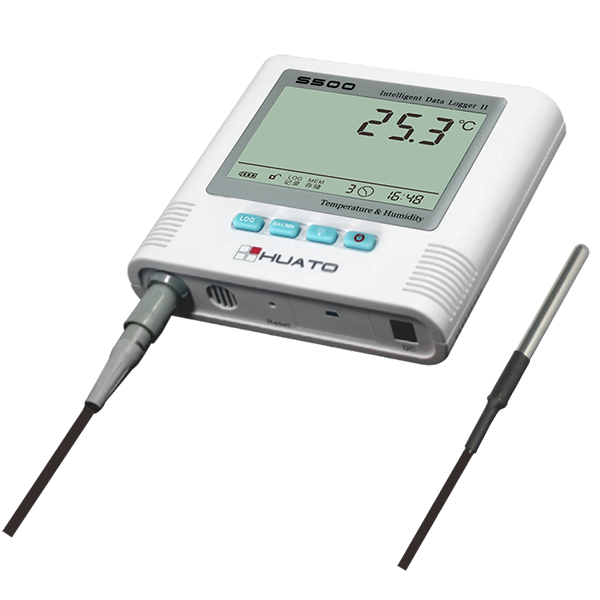

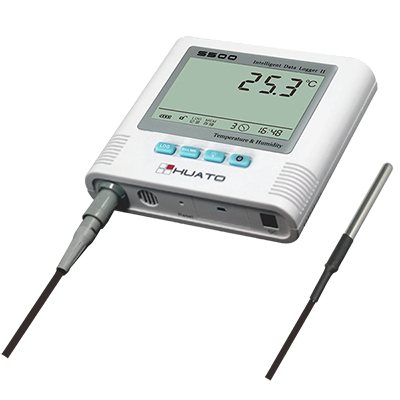

LCD Display Products image :
Applications:
Widely applied in agricultural research fields ,electronics, food industry, medical industry ,environmental protection, refrigerator and laboratory, etc.
Accessories :
Analyzed software, operation manual, USB cable, battery, adaptor
